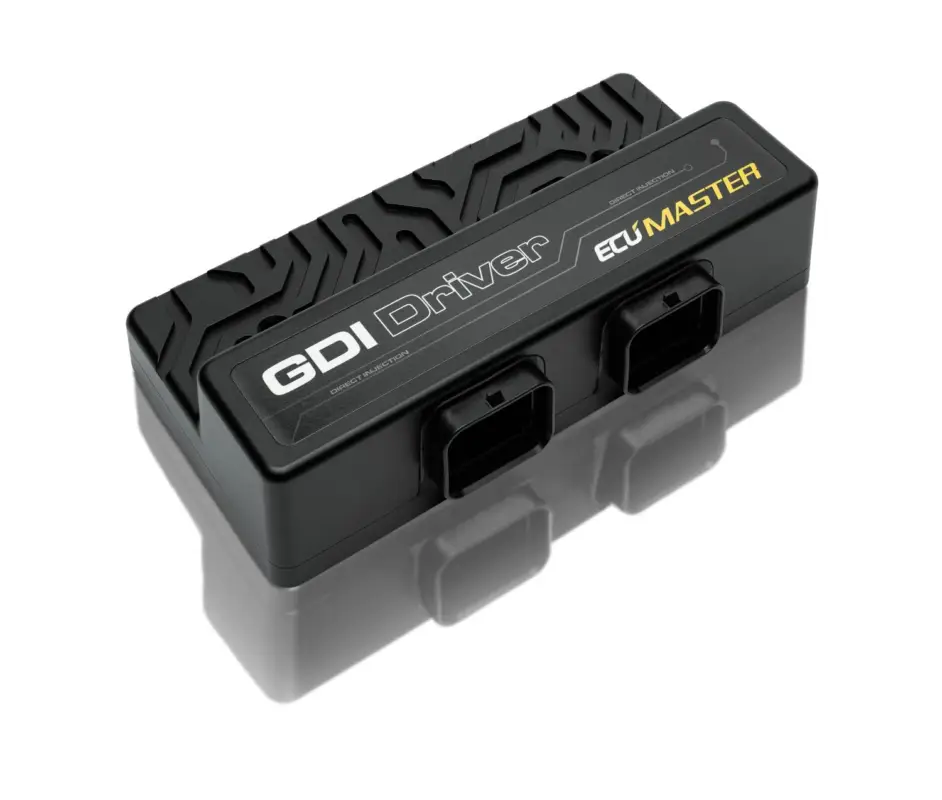

ECU master GDI Driver
- Supports up to 8 peak-and-hold GDI Injectors (70V Solenoid Valve Type)
8x Low-side outputs
4x High-side outputs
Current measurement - Supports up to 2 high-pressure pump valves with peak-and-hold2 Pairs of low-side + high-side outputs
Current measurement
Customizable peak and hold currents and timing - 4x Configurable SENT buses
- 8x Analog outputs (0-5V) for SENT signal conversion
- 1x CAN bus for setup, diagnostics, and EMU PRO communication
- 8x Digital inputs to manage injector control via EMU PRO outputs
- 2x Digital inputs for high-pressure pump control
- AMP SUPERSEAL 1.0 connectors
EMU PRO Strategy:
- Control for up to 2 high-pressure fuel rails
- Customizable injection timing
- Supports up to 16 injectors (8 direct through the GDI Driver, 8 port injectors directly via EMU PRO)
- Configurable fuel injection split between port and direct injection
- Compatibility with various fuel pump cam types
- Supports multiple high-pressure pumps
- Adjustable rail pressure target
